Open Arc Weld Head OA-89 :
We are Manufacturer, Supplier, Exporter of Tube To Tube-Sheet Orbital Weld Head from Pune, Maharashtra, India, South America, Africa, Gulf Countries, Russia, Asia.
Compact Design
With & Without Cold Wire Feeder Unit
Water Cooled Tourch for Continous Operation
Infinitely Variable Clamps With Self Centering
Mechanical AVC For Adjusting Ovality Of The Pipes
Can be Used With and Without Filler Wire
Weld Head Can Be Easily Centered To The Pipe With Centering Knob
Torch Sevelling Possible For Welding Flanges
Specifications :
Tube diameter |
25 mm to 77 mm |
Welding current |
200 A |
Welding process |
GTAW with Filler Wire |
Tungsten dia |
1.6 / 2.4 / 3.2 mm |
Weight |
6 kg |
Cable length |
8 mtr. |
Welding postion |
Horizontal / Vertical |
Wire Diameter |
0.8, 1.2 mm |
Open Arc Weld Head OA-125 / OA-325 :
Features
Open Arc Weld Head With Water Cooled Torch Arc Voltage Control (AVC) & Torch Oscillation Control (OSC) for multi-pass Welding Of Medium And Heavy Wall Pipe Max. Oscillation Path Of The Torch: 20 mm Welding Torch With Ceramic Nozzle & Gas Lens For Laminar Gas Protection Infinitely Variable Adjustable Clamping Mechanism With Cold Wire Feeder Unit CWF-15 Wire Feeder Nozzle Exactly Adjustable Vertically And Horizontally Can Be Used With And Without Cold Wire Feeding
Cold Wire Feeder CWF-15
Feed Motor For Wire Ø 0.8 mm / Ø 1.00 mm / Ø 1.2 mm Wire Adjusting Unit Wire Nozzle With Core ( for Wire Ø 0.8 mm / Ø 1.00 mm / Ø 1.2 mm )

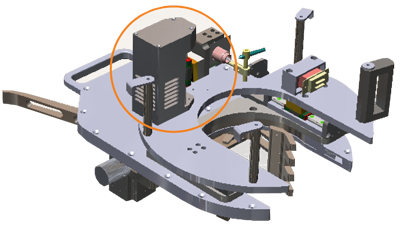

AVC Oscillation & Wire Feeder Mechanism With Water Cooled Welding Torch

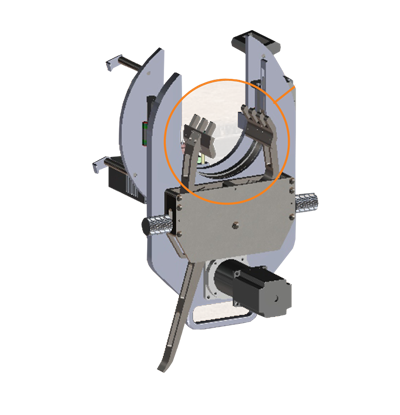

Adjustable Clamping System
Technical Specification :
| MODEL | OA-89 | OA-125 | OA-325 |
|---|---|---|---|
| Pipe Diameter (MM) | 19-89 | 25.4-127 | 168-325 |

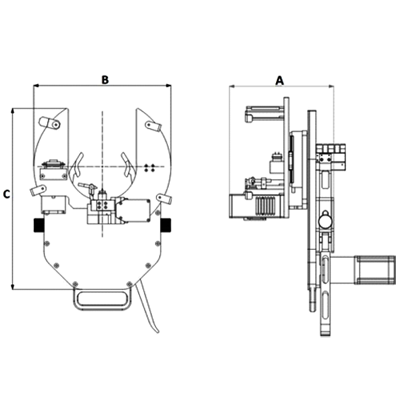

| Size (AxBxC) (MM) | 200x220x254 | 235.5x310x400 | 600x600x320 |
| Weight (KG) | 7 | 12.6 | 30 |
| Welding Speed (RPM) | 0.4-4 | 0.2-3 | 0.2-3 |
| Welding Thickness (MM) | 2.5-10 | 2.5-10 | 2.5-10 |
| Wire Diameter (MM) | 0.8-1 | 0.8-1 | 0.8-1 |
| Bevel Requirement | V / U | V / U | V / U |
| Welding Wire Spool (KG) | 15 | 15 | 15 |
